DIST0104

HD Video Distributor 1 In - 4 Out

  • HD-TVI 1080p
  • 1 IN - 4 OUT
  • Works with TVI, CVI, AHD & Analogue
  • BNC Connections
  • 12V DC PSU Supplied

Scatterbox Distributors take HD video inputs and duplicate them into multiple outputs allowing them to be driven to additional equipment such as extra monitors and quads, or for running extra video signals around a building.

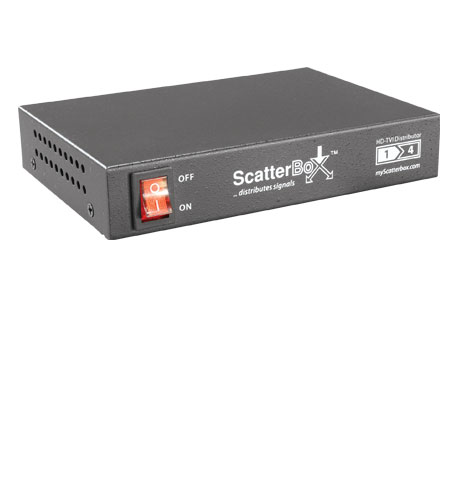

The DIST0104 is a desk mounted HD distributor capable of duplicating a BNC video input signal into 4 outputs.

Specification

  • 1x BNC In
  • 4x BNC Out
  • 12VDC / 1A, 36MHz, 130mA, 2.1mm DC Socket PSU
  • Size: 27x143x113mm (inc BNC)
